User Manuel

Here you'll find all the features and answers to your questions.

About

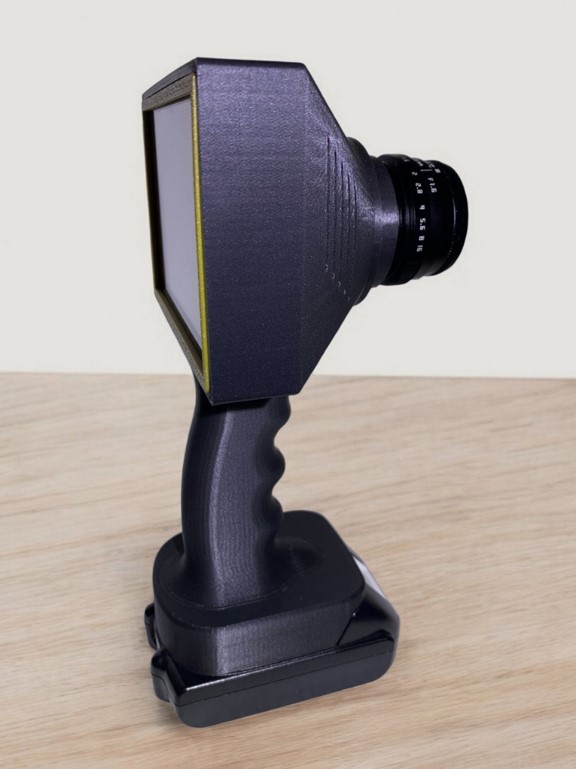

The TELLIADES Viewer has a built in 5.5 inch display.

Camera is designed for observation, registration and recording radiation in near infrared zone emitted by infrared sources such as GaAs IR LED, diode or solid-state lasers as well as for use in infrared microscopy, infrared luminescence.

The TELLIADES Viewer is ideal for the alignment of infrared beam and optical components in infrared systems in the 410-1100 nm spectral region.

The battery ensures longer and comfortable operation of device during one day of operating work.

The camera is based on a high-sensitive low-noise sensor.

The device can be used hand-held or with tripod.

Bottom

Safety requirements

The customer is responsible for light source safety while using a camera as a standalone device or integrated into system.
The customer must consider protective measures if necessary.
While assembling or operating camera, do not stare at the direct laser (or other source) light even with safety goggles.
This device will not protect you from direct or high light radiation. Use camera with caution and appropriate attenuation
Electrical safety requirements must be complied while operating this device

Bottom

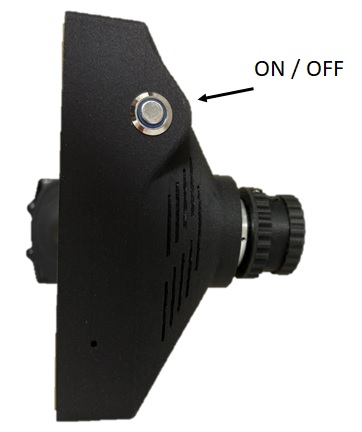

Switch ON/OFF

Press the button , minimum 1 sec
The display will show "loading" after approx. 15 seconds
The viewer will be switched on and ready to use after approx. 30 seconds.

Bottom

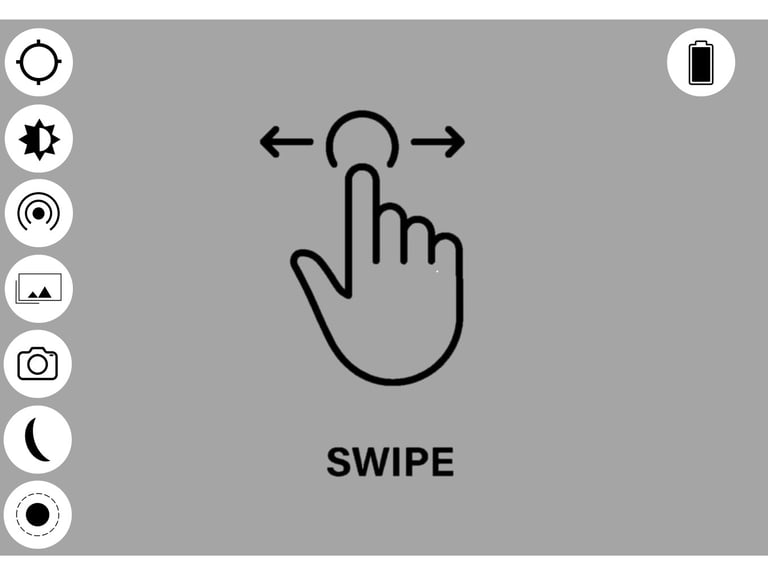

Menu Acess

Right to access settings
Left to hide settings

Bottom

Reticule

After clicking on the symbol, you can place the crosshairs anywhere on the screen by clicking on the screen.
This mode is ideal for creating a digital reference point.

Bottom

Stand By Mode

Set stand-by delay (minutes). T
The TELLIADES viewer detects if there is no movement and will pause after this delay.
To exit stand-by mode, simply move the viewer.
If the viewer is paused for too long, it will automatically switch off.

Bottom

Acquisition Mode

Exposure time and gain can be adjusted.

Exposure time in the range 10-200ms
Gain between 1 and 20
Use + and - for each parameter

Bottom

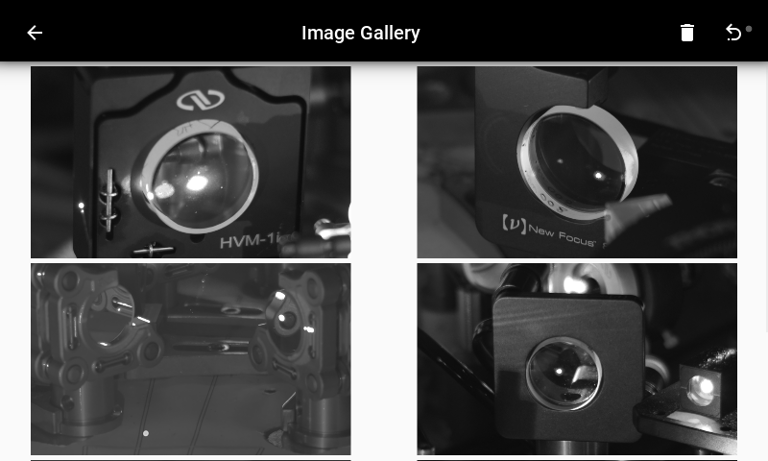

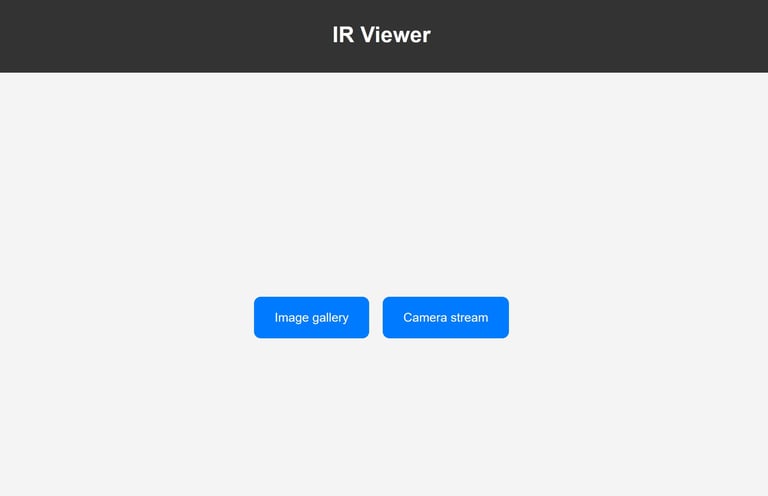

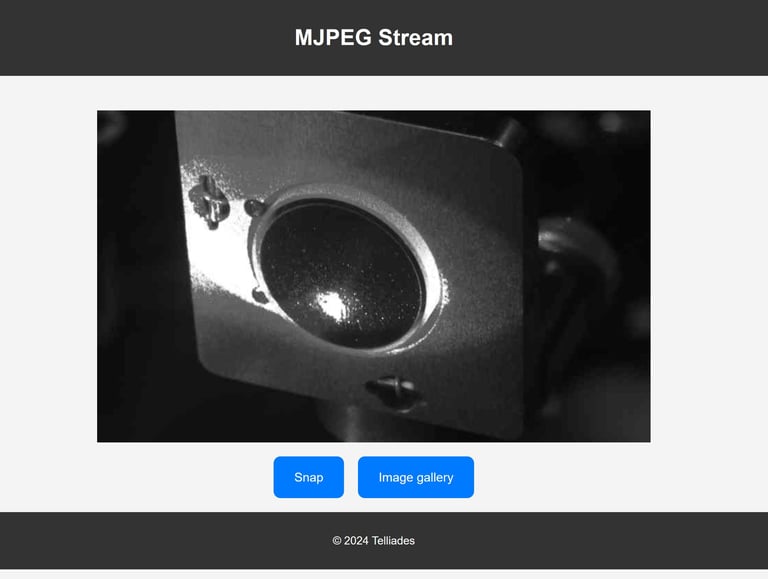

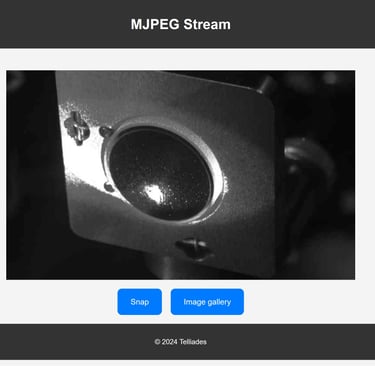

Image recording and Gallery

Save pictures

Click on the camera logo and the image will be saved automatically.
The file name will appear for a few seconds and you can find the image in the gallery.
